CNC LATHES
(Our lathe turning capability is up to 53" in diameter and up to 44" in length)




CNC MILLS
(Our milling capacity is up to 62" in length and 36" in height)



INSPECTION EQUIPMENT
(O.D. Micrometers up to 30" and I.D. Bore Micrometers up to 24")





NOTE:  We have a wide variety of air indexing chucks, collet chucks, air vises, along with large and small work holding vices for fast and accurate machining.



PARTIAL LIST OF MACHINES

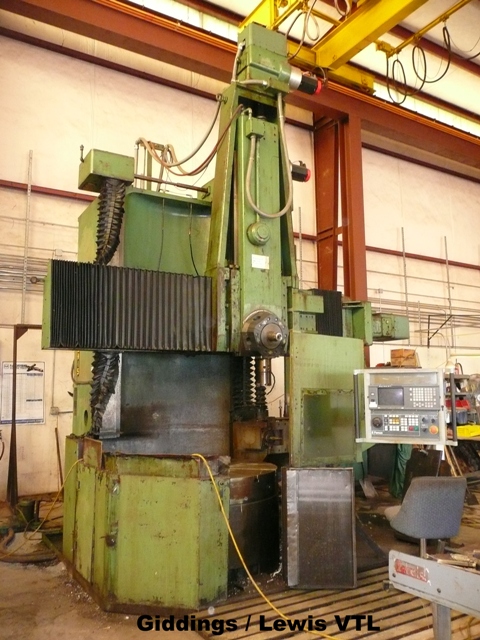

GIDDINGS / LEWIS Vertical Turret Lathe - 52" 3 or 4-jaw chuck, 56" swing, 72" under the rail

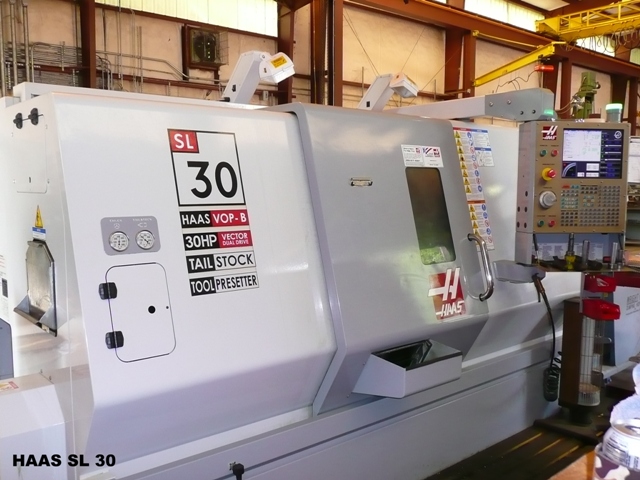

HAAS SL30 - 10" hydraulic 3-jaw chuck with 3" diameter spindle hole - 17" maximum cut diameter - 30" swing diameter - 34" maximum cut length

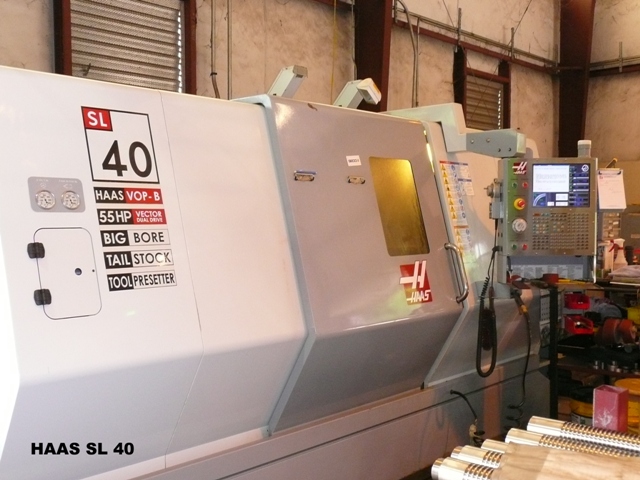

HAAS SL40 - 21" hydraulic 3-jaw chuck with 7" diameter spindle hol - 25.5" maximum cut diameter - 40" swing diameter

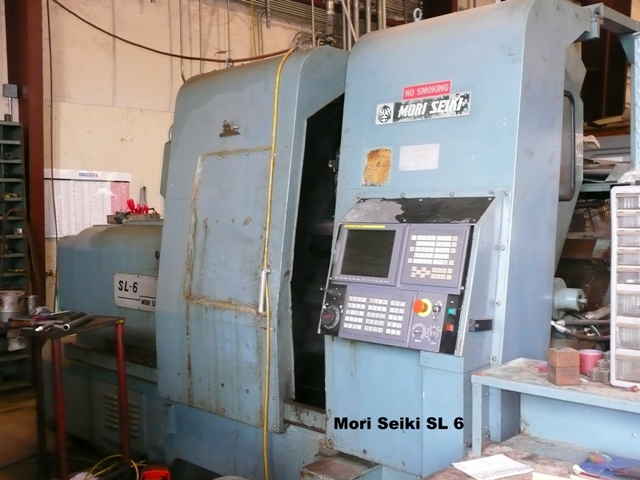

MORI-SEIKI SL6 - 18" hydraulic chuck with 20" maximum cut diameter - 36" shaft work capacity
MAZAK M5 - 14" air actuated 3-jaw chuck with 4" diameter spindle hole - 14" maximum cut diameter - 48" maximum cut length
FEMCO CL20 - 10" hudraulic chuck with 3" diameter spindle hole - 9.5" maximum cut diameter - 22 " maximum cut length

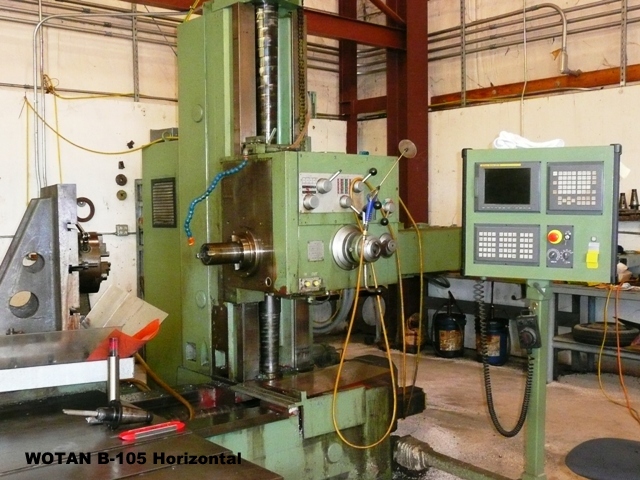

WOTAN B-105 - 4 axis horizontal machining center - 48" x 20" table with 40" X axis travel - 20" Y axis travel - 28" Z axis travel - 12" rotary table

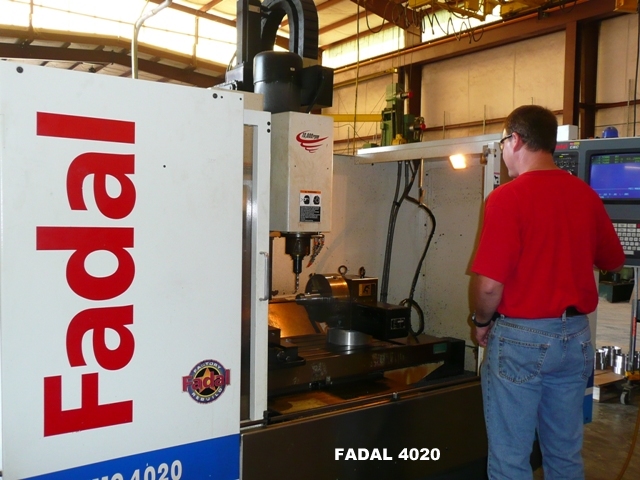

FADAL 4020 - 48" x 20" table with 40" X axis travel - 20" Y axis travel - 28" Z axis travel - 12" rotary table

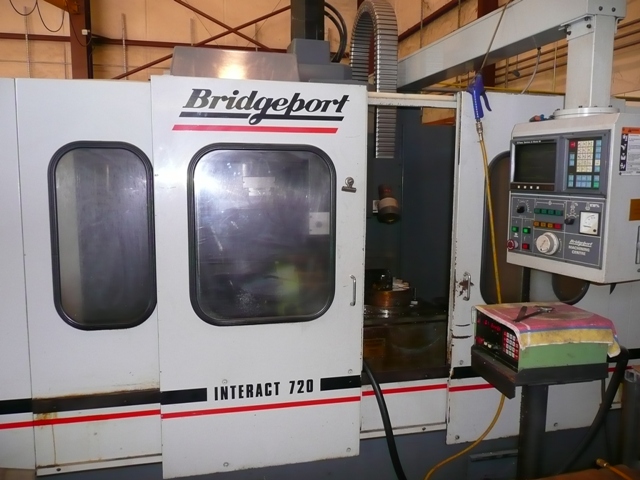

BRIDGEPORT INTERACT 720 - 30" X axis travel - 16" Y axis travel - 23" Z axis travel - 8" rotary table
(800) 441-1112
(601)  442-1800

6 Ridgeway Road
Natchez, MS  39120

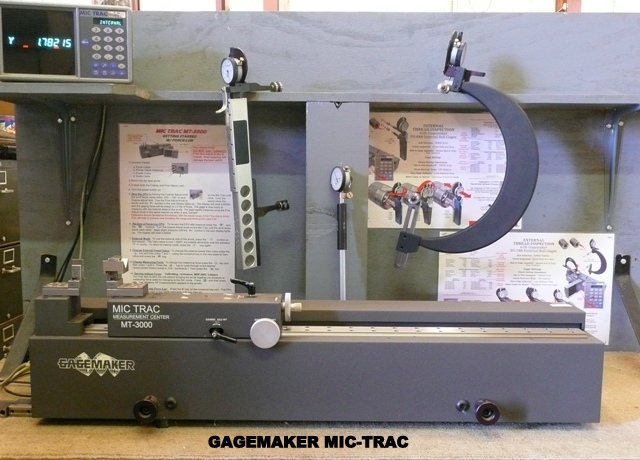

GAGEMAKER MIC-TRAC Inspection Equipment Calibration Unit. Thread rolls and micrometers from 8 tpi and up for both O.D. and I.D. O.D. Micrometers up to 30" and I.D. Bore Micrometers up to 24".
Manufacturer of the
BROWNING ON-OFF TOOL
